Sale!

4G Live Tracker with CANBUS Fuel Monitoring – FMC150

£ 95.40 inc. VAT (£ 79.50 exc. VAT)

Availability: In stock

Tracking Subscription *

Select a subscription option below. Flexible pay upfront options from less than £20 with everything included, there are no additional or unexpected costs –

SKU: Vigi-fmc150 Categories: ,

Need help selecting the right device?

01206 804 834 01206 804 834 Email info@vigitech

Compact 4G Tracker with integrated CANBUS

  • Real time tracking of cars, vans, motorcycles and heavy vehicles
  • Easy to install – fitting guide provided for all supported vehicles & machinery
  • Driver identification with our slim bluetooth driver id cards or fobs
  • Temperature & Humidity monitoring with our compact bluetooth and hard wired sensors
  • No hidden costs, no top-ups with our all inclusive tracking subscription from less than £1 a week
  • Subscription covers over 200 Countries including the UK and all of Europe, America and beyond
  • Online & email reports including trips with driver behaviour, daily summary, fuel usage and routes taken. Exportable to Excel or PDF.
  • Can be fitted on a Car, Van, Coach, Plant, Truck, and Mobile homes
  • Real-Time CANBUS data including Fuel level, Door status and much more (depending on vehicle)
  • Speeding and PTO activity highlighted in different colours on the map

Can be configured to send you immediate App Push notifications, email or text message alerts when:

  • Engine started
  • Vehicle left unlocked
  • Exits pre-defined area (Geofence)
  • Battery disconnected
  • Speeding detected (Vehicle exceeds speed limit)
  • Fuel level dropped or vehicle refuelled
  • Alarm activated
  • Towed (moves without engine started)

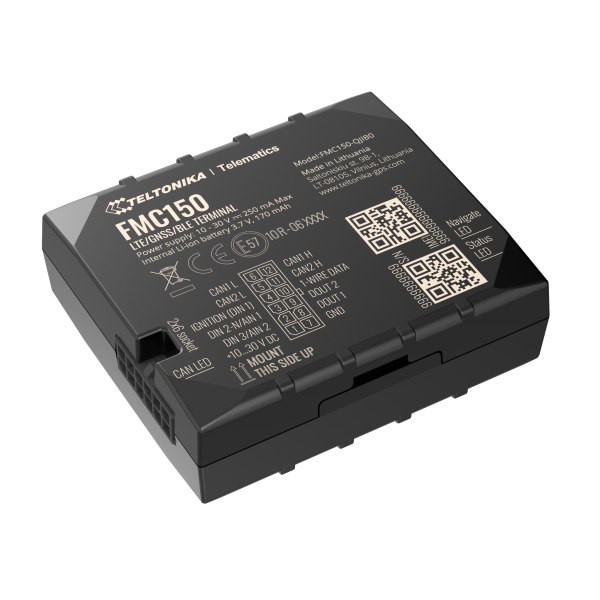

FMC150 is an ADVANCED GSM/GNSS/Bluetooth tracker with integrated CAN data processor. It is compact 2 in 1 solution: GPS tracker and CAN adapter inside! The device allows to read CAN data from a wide range of various vehicles, including light & electric vehicles, trucks, buses and special machinery.

Please get in touch if you’d like a demo or have specific requirements you’d like to discuss.

FMC150 – 4G Cat 1 is an ADVANCED GSM/GNSS/Bluetooth tracker with integrated CAN data processor. It is compact 2 in 1 solution: GPS tracker and CAN adapter inside! Device allows to read CAN data from a wide range of various vehicles, including light & electric vehicles, trucks, buses and special machinery. Depending on exact software version FMC150 can be used in advanced applications as heavy logistics, delivery services, utility transport.

FMC150 – 4G Cat 1 supports Bluetooth 4.0 LE protocol, which lets you connect various external devices and Bluetooth low energy sensors. New device is a major improvement for telematics with easier installation and flexibility to choose proper set of features without a change of hardware.



MODULE
Name FMC150-QJIB0: Quectel EG915U-EU with Teltonika TM2500
FMC150-QKIB0: Quectel EG915U-LA with Teltonika TM2500
Technology LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH
GNSS
GNSS GPS, GLONASS, GALILEO, BEIDOU, QZSS, AGPS
Receiver Tracking: 33
Tracking sensitivity -165 dBM
Accuracy < 3 m
Hot start < 1 s
Warm start < 25 s
Cold start < 35 s
CELLULAR
Technology GSM
2G bands Quad-band 850 / 900 / 1800 / 1900 MHz
Data transfer GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B
Data support SMS (text/data)
POWER
Input voltage range 10 – 30 V DC with overvoltage protection
Internal Back-up battery 170 mAh Li-Ion battery 3.7 V (0.63 Wh)
BLUETOOTH
Specification 4.0 + LE
Supported peripherals Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support
PHYSICAL SPECIFICATION
Dimensions 65 x 56,6 x 20,6 mm (L x W x H)
Weight 55 g
OPERATING ENVIRONMENT
Operating temperature (without battery) -40 °C to +85 °C
Storage temperature (without battery) -40 °C to +85 °C
Operating humidity 5% to 95% non-condensing
Ingress Protection Rating IP41
Battery charge temperature -0 °C to +45 °C
Battery discharge temperature -20 °C to +60 °C
Battery storage temperature -20 °C to +45 °C for 1 month
-20 °C to +35 °C for 6 months
INTERFACE
Digital Inputs 3
Negative Inputs 1 (Digital Input 2)
Impulse Inputs 2 (Digital Input 1, Digital Input 2)
Digital Outputs 2
Analog Inputs 2
CAN interfaces 2
1-Wire 1 (1-Wire data)
GNSS antenna Internal High Gain
Cellular antenna Internal High Gain
USB 2.0 Micro-USB
LED indication 3 status LED lights
SIM Micro-SIM + eSIM
Memory 128MB internal flash memory
FEATURES
CAN Data Fuel Level (Dashboard), Total fuel consumption, Vehicle speed (wheel), Vehicle driven distance, Engine speed (RPM), Accelerator pedal position
Sensors Accelerometer
Scenarios Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip
Sleep modes GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep
Configuration and firmware update FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)
SMS Configuration, Events, DOUT control, Debug
GPRS commands Configuration, DOUT control, Debug
Time Synchronization GNSS, NITZ, NTP
Ignition detection Digital Input 1, Accelerometer, External Power Voltage, Engine RPM

All-Inclusive subscription to our fully featured web based tracking and fleet management portal and mobile phone apps.

Key features include

  • Live, real time tracking – view all of your trackers from a single web page, plotted on a map.
  • Alerts – instant app notifications, email and SMS alerts. This allows for alerting in cases of driving behaviour like speeding, fuel and maintenance events, geo-fencing and many other types of alerts.
  • Reports – location history, trip, chart and summary reports. You can view data directly in the web or mobile app and also export and download an Excel file. History can also be projected on the map providing visual representation. Quick access drivers start and finish times for each day.
  • Scheduled reports by email detailing trips taken including driver behaviour and fuel usage.
  • Apps with push notifications for apple and android


The subscription includes a data sim card for use with our range of trackers and access to our secure tracking and alerting platform. These multi-network SIM cards are designed for IOT and Tracker use – optimised to give the best network access possible. The sim cards that we supply allow your tracker to work in over 150 countries across Europe and beyond.

Because our solution is developed in-house, if there’s functionality that isn’t in our system that you require, please get in touch and we will aim to accommodate your requirements.

You will be sent login details to the tracking platform as soon as your purchase is completed – your trackers will automatically be added. From here you can setup alerts and reports for all aspects of the tracking data.

Tracking Subscription Coverage

Our tracking subscription will provide GSM Network coverage for our trackers in the following countries:

Albania
Anguilla
Antigua And Barbuda
Argentina
Armenia
Australia
Austria
Bahrain
Barbados
Belgium
Bosnia And Herzegowina
Brunei Darussalam
Bulgaria
Cambodia
Cayman Island
Chile
China
Colombia
Congo, The Democratic Republic
Costa Rica
Croatia
Cyprus
Czech Republic
Denmark
Dominica
Dominican Republic
Ecuador
Egypt
El Salvador
Estonia
Faroe Islands
Finland
France
Georgia
Germany
Ghana
Gibraltar
Greece
Guatemala
Honduras
Hong Kong
Hungary
Iceland
India
Indonesia
Ireland
Israel
Italy
Jamaica
Japan
Jordan
Kazakhstan
Kenya
Korea, Republic Of
Kyrgyzstan
Latvia
Liechtenstein
Lithuania
Luxembourg
Macedonia, The Former Yugoslav Republic Of
Malaysia
Malta
Mexico
Moldova, Republic Of
Monaco
Mongolia
Montenegro
Morocco
Mozambique
Myanmar
Netherlands
New Zealand
Nicaragua
Norway
Panama
Papua New Guinea
Peru
Philippines
Poland
Portugal
Puerto Rico
Qatar
Reunion
Romania
Russian Federation
Saint Kitts And Nevis
Saint Lucia
Samoa
Saudi Arabia
Serbia
Singapore
Slovakia, Slovak Republic
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Taiwan
Tanzania, United Republic Of
Thailand
Turks And Caicos Islands
Ukraine
United Arab Emirates
United Kingdom
United States
Uruguay
Weight 0.25 g
Dimensions 72.5 × 73 × 27.3 cm
Brand

Teltonika

EAN

4779027310299
